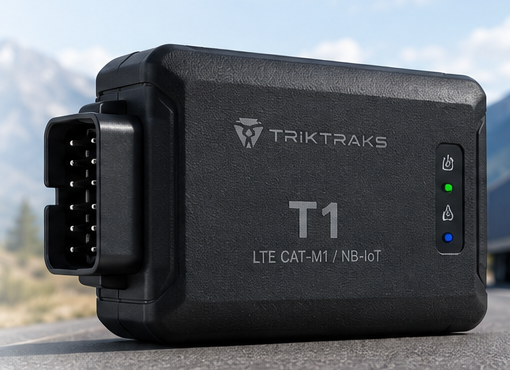

Tracker Hardware

Tracker.

See everything. Control anything.

The TrikTraks Tracker is a rugged, intelligent IoT device that delivers real-time telemetry, location, and vehicle data—anywhere your fleet goes.

Real-time Location Live tracking and geofencing alerts.

Vehicle Diagnostics Engine data, fault codes, and performance.

Always Connected Multi-network cellular with auto-failover.

Built to Last Rugged, compact, and built for any environment.

View Specifications Watch Overview

IP67 Water & Dust Resistant

Plug & Play Installation Easy setup with OBD-II or hardwired options.

Wide Compatibility Works with most vehicles, trucks, and equipment.

Secure & Reliable End-to-end encryption and secure firmware.

Edge Intelligence On-device processing reduces bandwidth.

Over-the-Air Updates Remote configuration and firmware updates.

Global Coverage Multi-carrier roaming in 150+ countries.

TELEMETRY INTEGRITY PIPELINE

From physical sensor to governed operational action.

Every telemetry packet is cryptographically signed at the hardware level before cellular transmission, ensuring your fleet records are immutable, auditable, and court-ready.

1Sensor Capture CAN bus & GNSS polled sub-second

2Crypto Sign Hardware HSM signs packet payload

3Cellular Ingest LTE-M / 5G fallback connection

4FleetOps Stream Real-time event evaluated by ASSIST

5Auditable Record Stored immutably for compliance & safety

DTC Diagnostic Fault Impact / Harsh Braking Geofence Boundary Breach Zero-trust architecture →

HARDWARE SPECIFICATIONS

Engineered for extreme durability and precision.

Built to withstand harsh engine bay vibrations, extreme temperature swings, and challenging cellular conditions.

Multi-Constellation GNSS

Simultaneous tracking of GPS, GLONASS, Galileo, and BeiDou satellites with dead reckoning support in tunnels and urban canyons.

Dual CAN-bus & J1939

Direct vehicle bus access capturing true odometer, fuel consumption, engine load, coolant temp, and Diagnostic Trouble Codes (DTCs).

3-Axis Impact & Rollover IMU

Internal high-G accelerometer and gyroscope identifying harsh braking, rapid acceleration, aggressive cornering, and collision events.

Hardware Secure Boot

Cryptographic key storage on an embedded secure element, ensuring only signed firmware executes on the device.

IP67 Enclosure

Sealed against dust, water immersion up to 1 meter, high-pressure washes, and temperature extremes from -40°C to +85°C.

Internal Battery & Tamper Alert

Rechargeable Li-Polymer backup battery maintains tracking if vehicle power is disconnected, triggering an instant tamper alert.

PLUG-AND-PLAY OR DIRECT WIRE

Compatible with any vehicle in your fleet.

Tracker installs in under 10 minutes via OBD-II port, standard 9-pin / 6-pin Deutsch heavy-duty diagnostic connectors, or direct 3-wire hardwire harness.

Order Starter Hardware Kit →

Light & Medium Duty

OBD-II connector for vans, pickups, service vehicles, and passenger fleets.

Heavy Commercial Trucks

J1939 / J1708 Deutsch 9-pin connector for Class 7-8 tractor trailers and vocational trucks.

Yellow Iron & Heavy Equipment

Ruggedized 3-wire harness with IP67 sealed connectors for excavators, loaders, and generators.

Electric & Hybrid Fleets

High-voltage battery State-of-Charge (SoC), regen telemetry, and charging status feeds.

Powerful Data. Real Results.

Tracker delivers the critical operational data you need to improve safety, efficiency, and uptime.

Live GPS tracking & route history
Engine diagnostics & fault codes
Fuel usage & efficiency metrics
Driver behavior & safety events
Geofencing & smart alerts
Battery voltage & health monitoring

Built for Any Fleet

From light passenger vehicles to heavy yellow iron, Tracker is built to perform in any commercial environment.

Trucks

Trailers

Buses

Equipment

Global Connectivity

Automatically roams across tier-1 cellular networks for uninterrupted uptime in 150+ countries.

Key Specifications

Compact, sealed, and automotive-certified hardware specifications.

Dimensions: 95 × 62 × 29 mm
Weight: 120 g
Input Voltage: 9–36 V DC
Backup Battery: 170 mAh Li-Po
Operating Temp.: -30°C to +75°C
Cellular: LTE-M / NB-IoT
GNSS: GPS / GLONASS / Galileo
Interfaces: OBD-II, CAN, Digital I/O

Ready to evaluate Tracker hardware in your fleet?

Request a 30-day pilot kit with pre-activated cellular SIMs and instant FleetOps access.
